OpenTelemetry

Observability refers to understanding a system’s internal state by analyzing its outputs. In software, this means examining telemetry data—such as traces, metrics, and logs—to gain insights into system behavior.

OpenTelemetry is a vendor-neutral, tool-agnostic framework and toolkit for creating and managing telemetry data. It helps implement observability in software applications.

OpenTelemetry defines three different kinds of telemetry data:

• Traces provide a high-level view of what happens when a request is made to an application. A trace can contain multiple spans.
• Metrics are measurements of a service captured at runtime.
• Logs are timestamped text records, either structured (recommended) or unstructured, with optional metadata.

Starting with version 0.21, Kestra supports all three kinds of telemetry data thanks to OpenTelemetry-compatible exporters. For more details, check out the OpenTelemetry official documentation.

Traces

The first step is to enable distributed traces inside the Kestra configuration file:

kestra:
  traces:
    root: DEFAULT  # Enable traces inside Kestra flow executions
otel:
  traces:
    exporter: otlp # Only otlp is supported for now
  exporter:
    otlp:
      endpoint: http://localhost:4317 # Replace with the address of your own collector

When enabled, Kestra instruments:

• All calls to its API
• All flow executions (one span per task execution, plus one span for each execution message processed by the Executor)
• External HTTP calls made by the HTTP tasks (including tasks that use the Kestra HTTP client)

Trace correlation

Kestra propagates the trace context so that traces are correlated:

• The API call trace correlates with the execution it creates.
• Flow execution traces correlate with parent flows when the Subflow or ForEachItem task is used.
• External HTTP calls include the standard propagation header for downstream correlation.

Example: Jaeger with Docker Compose

Enable Jaeger, an OpenTelemetry-compatible tracing platform, with Kestra in a Docker Compose configuration file:

services:
  # Postgres is included here as a dependency for Kestra during local testing
  postgres:
    image: postgres:14.13
    environment:
      POSTGRES_DB: kestra_unit
      POSTGRES_USER: kestra
      POSTGRES_PASSWORD: k3str4
    ports:
      - 5432:5432
    restart: on-failure

  jaeger-all-in-one:
    image: jaegertracing/all-in-one:latest
    ports:
      - "16686:16686"  # Jaeger UI
      - "14268:14268"  # OpenTracing (optional)
      - "4317:4317"    # OTLP gRPC receiver
      - "4318:4318"    # OTLP HTTP receiver
      - "14250:14250"  # External otel-collector (optional)
    environment:
      - COLLECTOR_OTLP_ENABLED=true
    restart: on-failure

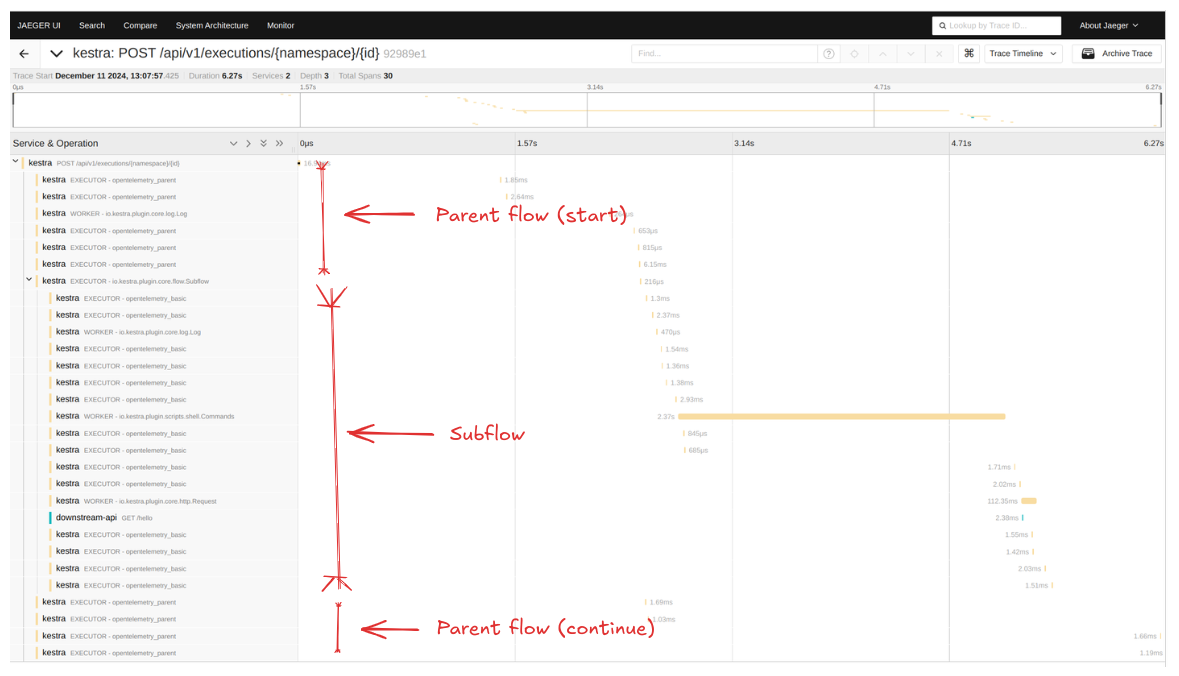

The following screenshot shows three correlated traces:

• One created from the API call that creates the execution
• One created from an execution of a flow named opentelemetry_parent which has spans for tasks including a Subflow
• One created from the opentelemetry_basic flow execution

Disabling traces

You can disable traces for flows while keeping API traces:

kestra:
  traces:
    root: DISABLED

You can also disable traces per component (experimental). For example, disabling only Executor spans:

kestra:
  traces:
    root: DEFAULT
    categories:
      io.kestra.core.runners.Executor: DISABLED

Supported categories

Metrics

To send metrics to an OpenTelemetry-compatible collector, add the following parameters to your Kestra configuration file:

micronaut:
  metrics:
    export:
      otlp:
        enabled: true
        url: http://localhost:4318/v1/metrics # Replace with your collector URL

For example, you can configure an OpenTelemetry Collector to forward metrics to Prometheus:

receivers:
  otlp:
    protocols:
      http:
        endpoint: 0.0.0.0:4318

exporters:
  prometheus:
    endpoint: "0.0.0.0:9464"

Logs

To send logs to an OpenTelemetry-compatible collector, use the LogShipper with the built-in OpenTelemetry log exporter.

The following flow sends logs from all flows to a collector daily:

id: log_shipper
namespace: company.team

triggers:
  - id: daily
    type: io.kestra.plugin.core.trigger.Schedule
    cron: "@daily"

tasks:
  - id: log_export
    type: io.kestra.plugin.ee.core.log.LogShipper
    logExporters:
      - id: OTLPLogExporter
        type: io.kestra.plugin.ee.opentelemetry.LogExporter
        otlpEndpoint: http://localhost:4318/v1/logs # Replace with your collector URL
