Execution

Execute flows and view the results.

An execution is a single run of a flow with a specific state.

Task run

A task run is a single run of an individual task within an execution.

Each task run has associated data such as:

• Execution ID
• State
• Start Date
• End Date

Read more about task runs on the dedicated docs page.

Attempts

Each task run can have one or more attempts. Most task runs have only one attempt, but you can configure retries for a task. If retries have been configured, a task failure will generate new attempts until the retry maxAttempts or maxDuration threshold is hit.

Outputs

Each task can generate output data that other tasks in the current flow execution can use. These outputs can be variables or files that are stored inside Kestra’s internal storage.

Outputs are described on each task’s documentation page and can be viewed in the Outputs tab of the Execution page. Read more on the Outputs page.

Metrics

Each task can expose metrics that help you understand task internals. Metrics may include file size, number of returned rows, or query duration. You can view the available metrics for a task type on its documentation page.

Metrics can be seen in the Metrics tab of the Executions page.

Below is an example of a flow generating metrics:

id: load_data_to_bigquery
namespace: company.team

tasks:
  - id: http_download
    type: io.kestra.plugin.core.http.Download
    uri: https://huggingface.co/datasets/kestra/datasets/raw/main/csv/orders.csv

  - id: load_bigquery
    type: io.kestra.plugin.gcp.bigquery.Load
    description: Load data into BigQuery
    autodetect: true
    csvOptions:
      fieldDelimiter: ","
    destinationTable: kestra-dev.demo.orders
    format: CSV
    from: "{{ outputs.http_download.uri }}"

You can see the list of generated metrics generated in the BigQuery Load task documentation.

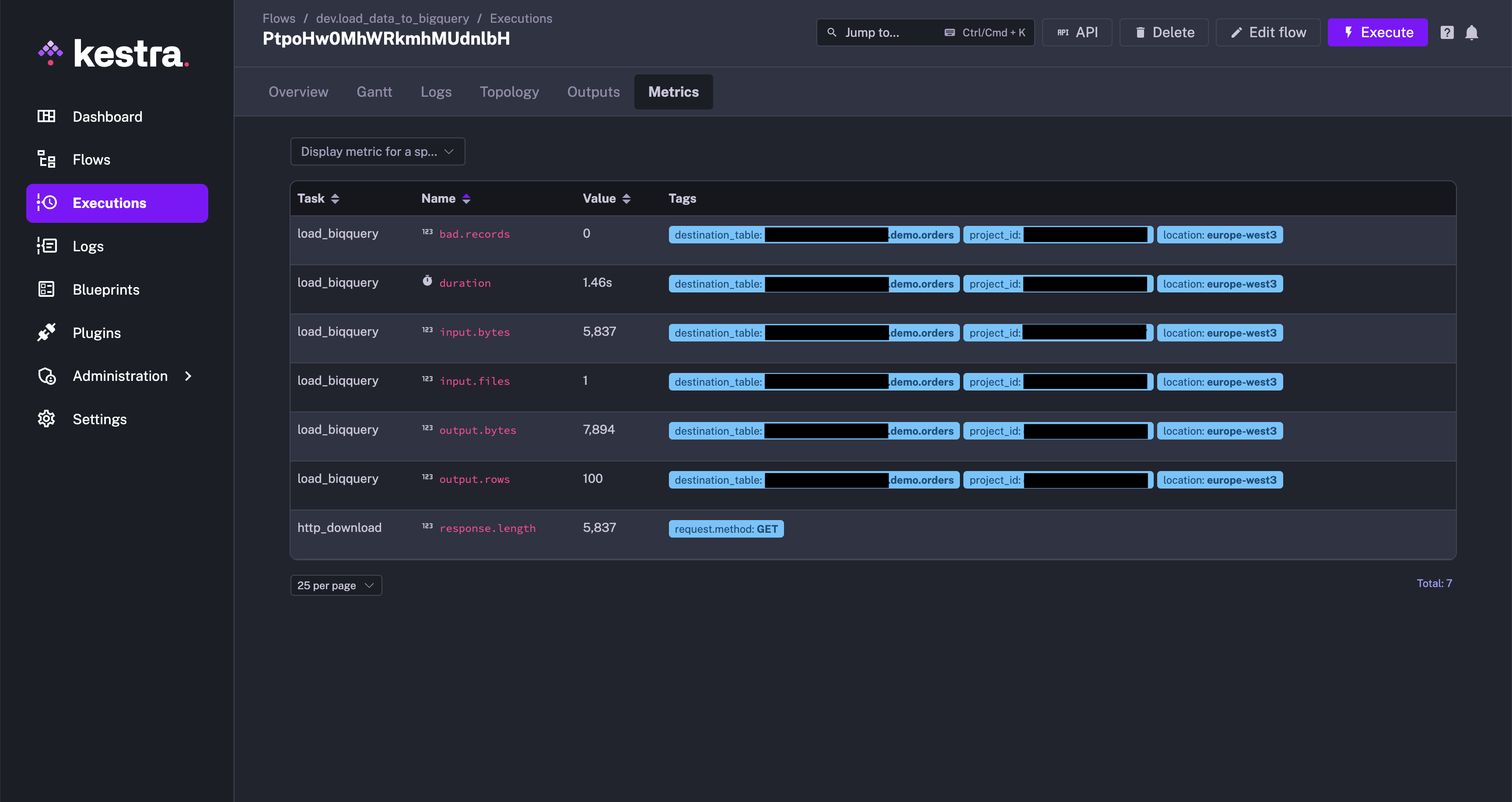

After executing the flow, view the BigQuery Load task metrics in the Metrics tab.

State

An execution or a task run can be in a particular state.

There are multiple possible states:

Execution expressions

You can use the following execution expressions in your flow.

Execute a flow from the UI

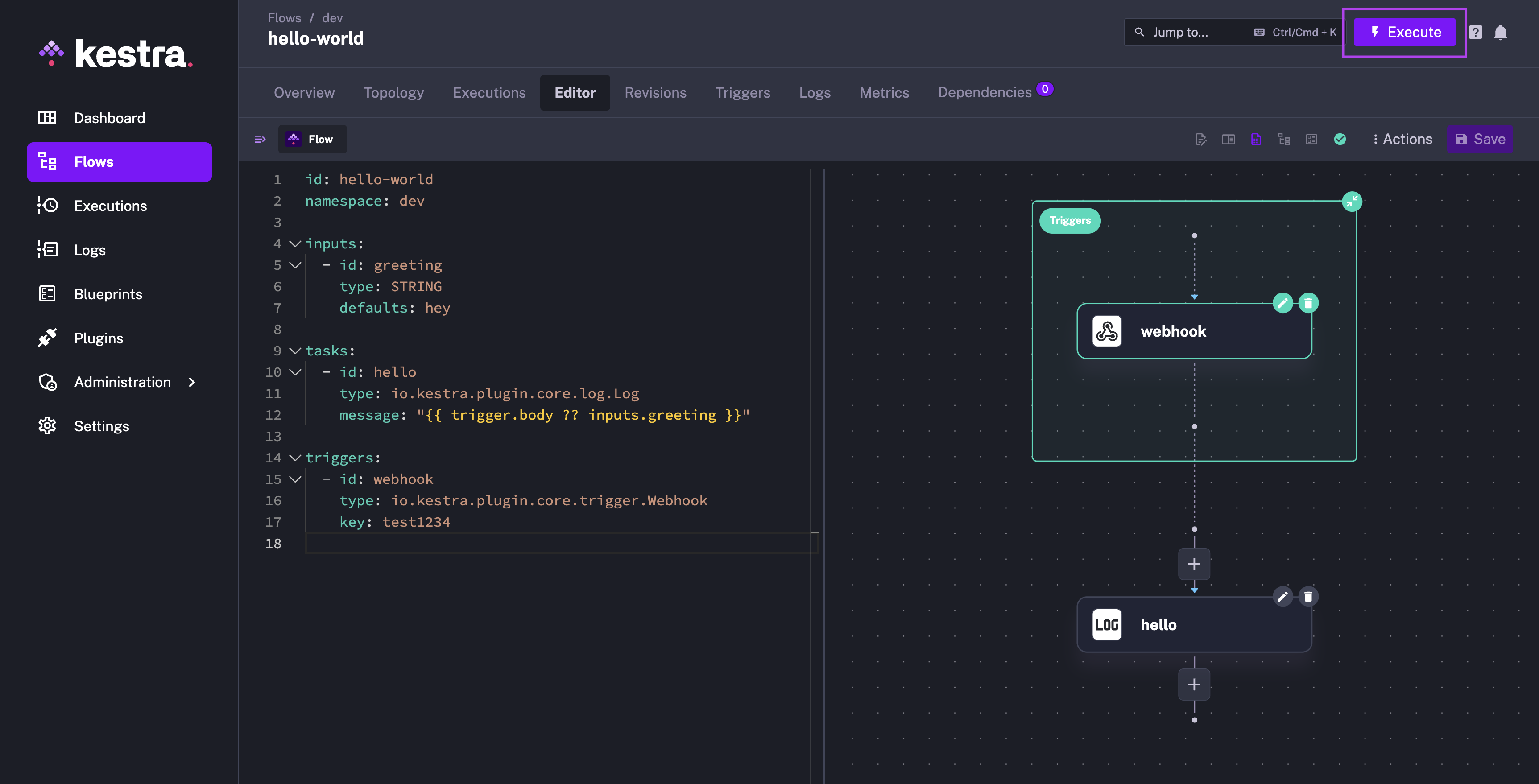

You can trigger a flow manually from the Kestra UI by clicking the Execute button on the flow page. This is useful when you want to test a flow or run it on demand.

Use automatic triggers

You can add a Schedule trigger to automatically launch a flow execution at a regular time interval.

Alternatively, you can add a Flow trigger to automatically launch a flow execution when another flow execution is completed. This is helpful when you want to:

• Implement a centralized namespace-level error handling strategy, e.g., to send a notification when any flow execution fails in a production namespace. Check the Alerting & Monitoring section for more details.
• Decouple your flows by following an event-driven pattern where a flow is triggered by the completion of another flow (as opposed to the [subflow pattern]… where a parent flow explicitly calls child flows).

You can also use the Webhook trigger to automatically launch a flow execution when a given HTTP request is received. You can leverage the {{ trigger.body }} variable to access the request body and the {{ trigger.headers }} variable to access the request headers in your flow.

To launch a flow and send data to the flow’s execution context from an external system using a webhook, you can send a POST request to the Kestra API using the following URL:

http://<kestra-host>:<kestra-port>/api/v1/main/executions/webhook/<namespace>/<flow-id>/<webhook-key>

Below is an example:

http://localhost:8080/api/v1/main/executions/webhook/dev/hello-world/secretWebhookKey42

You can also pass inputs to the flow using the inputs query parameter.

Execute a flow via an API call

You can trigger a flow execution by calling the API directly. This is useful when you want to start a flow execution from another application or service.

Use the following flow as an example:

id: hello_world
namespace: company.team

inputs:
  - id: greeting
    type: STRING
    defaults: hey

tasks:
  - id: hello
    type: io.kestra.plugin.core.log.Log
    message: "{{ inputs.greeting }}"

triggers:
  - id: webhook
    type: io.kestra.plugin.core.trigger.Webhook
    key: test1234

If Kestra runs locally, trigger a flow by calling /api/v1/main/executions/{namespace}/{flowId} endpoint. This example uses curl but you could use something else like Postman to test this too:

curl -X POST \
http://localhost:8080/api/v1/main/executions/company.team/hello_world

The above command triggers an execution of the latest revision of the hello_world flow from the company.team namespace.

Execute a specific revision of a flow

If you want to trigger an execution for a specific revision, you can use the revision query parameter:

curl -X POST \
http://localhost:8080/api/v1/main/executions/company.team/hello_world?revision=2

Execute a flow with inputs

You can also trigger a flow execution with inputs by adding the inputs as form data (the -F flag in the curl command):

curl -X POST \
http://localhost:8080/api/v1/main/executions/company.team/hello_world \
-F greeting="hey there"

You can pass inputs of different types, such as STRING, INT, FLOAT, DATETIME, FILE, BOOLEAN, and more.

curl -v "http://localhost:8080/api/v1/main/executions/company.team/kestra-inputs" \
    -H "Transfer-Encoding:chunked" \
    -H "Content-Type:multipart/form-data" \
    -F string="a string"  \
    -F optional="an optional string"  \
    -F int=1  \
    -F float=1.255  \
    -F boolean=true  \
    -F instant="2023-12-24T23:00:00.000Z" \
    -F "files=@/tmp/128M.txt;filename=file"

Execute a flow with FILE-type inputs

You can also pass files as an input. All files must be sent as multipart form data named files with a header filename=your_kestra_input_name indicating the name of the input.

Let’s look at an example to make this clearer. Suppose you have a flow that takes a JSON file as input and reads the file’s content:

id: large_json_payload
namespace: company.team

inputs:
  - id: myCustomFileInput
    type: FILE

tasks:
  - id: hello
    type: io.kestra.plugin.scripts.shell.Commands
    inputFiles:
      myfile.json: "{{ inputs.myCustomFileInput }}"
    taskRunner:
      type: io.kestra.plugin.core.runner.Process
    commands:
      - cat myfile.json

Assuming you have a file myfile.json in the current working directory, you can invoke the flow using the following curl command:

curl -X POST -F "files=@./myfile.json;filename=myCustomFileInput" 'http://localhost:8080/api/v1/main/executions/company.team/large_json_payload'

Execute a flow via an API call in Python

You can also use the requests library in Python to make requests to the Kestra API. Here’s an example:

import requests
from requests_toolbelt.multipart.encoder import MultipartEncoder

with open("/tmp/128M.txt", 'rb') as fh:
  url = "http://kestra:8080/api/v1/main/executions/company.team/hello_world"
  mp_encoder = MultipartEncoder(fields={
    "string": "a string",
    "int": 1,
    "float": 1.255,
    "datetime": "2025-04-20T13:00:00.000Z",
    "files": ("file", fh, "text/plain")
  })
  result = requests.post(
      url,
      data=mp_encoder,
      headers={"Content-Type": mp_encoder.content_type},
  )

Get URL to follow the Execution progress

The executions endpoint also returns a URL, allowing you to follow the execution progress from the UI. This is helpful for externally triggered, long-running executions that require users to follow the workflow progress. Below shows the steps to how you can use it:

1. First, create a flow:

id: myflow
namespace: company.team

tasks:
  - id: long_running_task
    type: io.kestra.plugin.scripts.shell.Commands
    commands:
      - sleep 90
    taskRunner:
      type: io.kestra.plugin.core.runner.Process

2. Execute the flow via an API call:

curl -X POST http://localhost:8080/api/v1/main/executions/company.team/myflow

You will see output similar to the following:

{
  "id": "1ZiZQWCHj7bf9XLtgvAxyi",
  "namespace": "company.team",
  "flowId": "myflow",
  "flowRevision": 1,
  "state": {
    "current": "CREATED",
    "histories": [
      {
        "state": "CREATED",
        "date": "2024-09-24T13:35:32.983335847Z"
      }
    ],
    "duration": "PT0.017447417S",
    "startDate": "2024-09-24T13:35:32.983335847Z"
  },
  "originalId": "1ZiZQWCHj7bf9XLtgvAxyi",
  "deleted": false,
  "metadata": {
    "attemptNumber": 1,
    "originalCreatedDate": "2024-09-24T13:35:32.983420055Z"
  },
  "url": "http://localhost:8080/ui/executions/company.team/myflow/1ZiZQWCHj7bf9XLtgvAxyi"
}

You can click directly on that last URL to follow the execution progress from the UI, or you can return that URL from your application to the user who initiated the flow.

Keep in mind that you need to configure the URL of your Kestra instance within your configuration file to have a full URL rather than just the suffix /ui/executions/company.team/myflow/uuid. Here is how you can do it:

kestra:
  url: http://localhost:8080

Webhook vs. API call

When sending a POST request to the /api/v1/main/executions/{namespace}/{flowId} endpoint, you can send data to the flow’s execution context using inputs. If you want to send arbitrary metadata to the flow’s execution context based on some event happening in your application, you can leverage a Webhook trigger.

You can adjust the previous hello_world example to use the webhook trigger instead of an API call:

id: hello_world
namespace: company.team

inputs:
  - id: greeting
    type: STRING
    defaults: hey

tasks:
  - id: hello
    type: io.kestra.plugin.core.log.Log
    message: "{{ trigger.body ?? inputs.greeting }}"

triggers:
  - id: webhook
    type: io.kestra.plugin.core.trigger.Webhook
    key: test1234

You can now send a POST request to the /api/v1/main/executions/webhook/{namespace}/{flowId}/{webhookKey} endpoint to trigger an execution and pass any metadata to the flow using the request body. In this example, the webhook URL would be http://localhost:8080/api/v1/main/executions/webhook/company.team/hello_world/test1234.

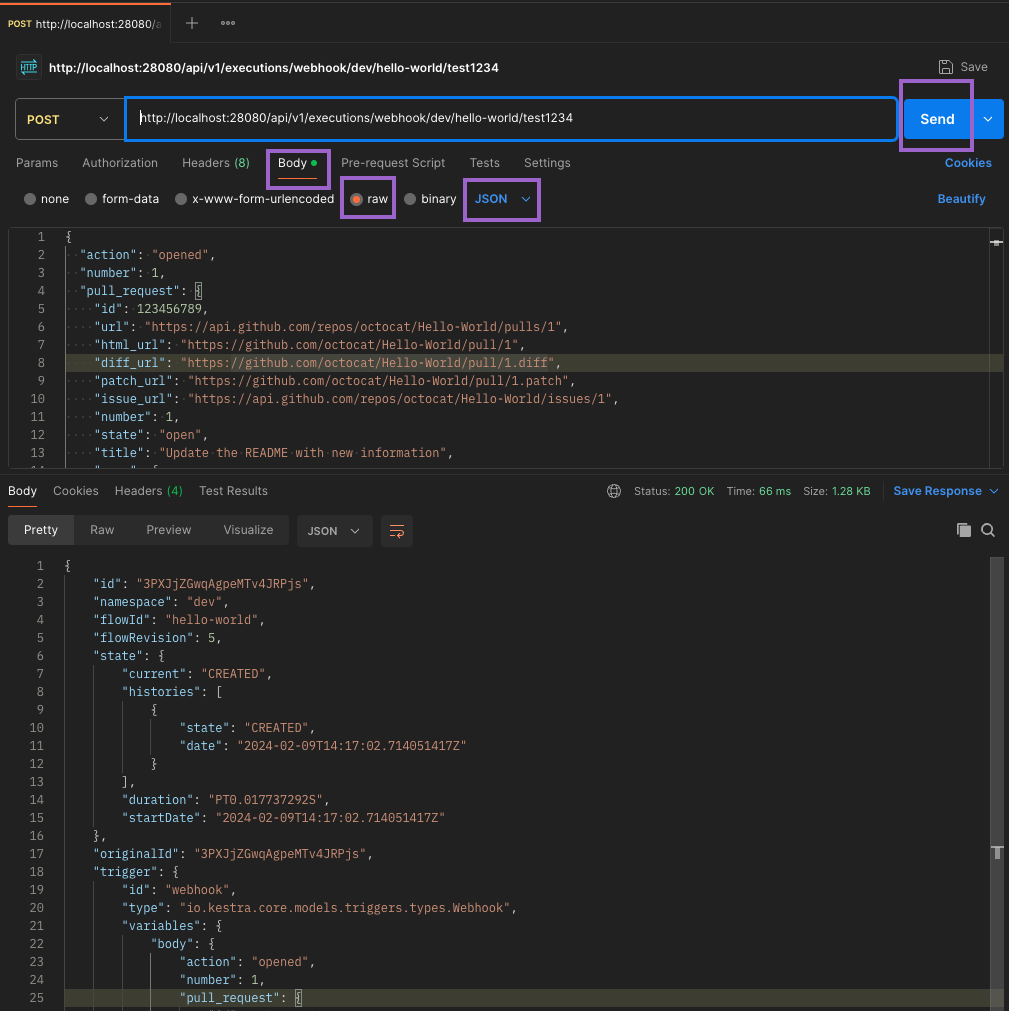

You can test the webhook trigger using a tool like Postman or cURL. Paste the webhook URL in the URL field and a sample JSON payload in the request body. Make sure to set:

• the request method to POST
• the request body type to raw JSON format

Finally, click the Send button to trigger the flow execution. You should get a response with the execution ID and status code 200 OK.

Execute a flow from Python

You can also execute a flow using the kestra pip package. This is useful when you want to trigger a flow execution from a Python application without crafting the HTTP request manually, as shown earlier.

First, install the package:

pip install kestra

Then, you can trigger a flow execution by calling the execute() method. Below is an example for the same hello_world flow in the namespace company.team as above:

from kestra import Flow
flow = Flow()
flow.execute('company.team', 'hello_world', {'greeting': 'hello from Python'})

Now imagine that you have a flow that takes a FILE-type input and reads the file’s content:

id: myflow
namespace: company.team

inputs:
  - id: myfile
    type: FILE

tasks:
  - id: print_data
    type: io.kestra.plugin.core.log.Log
    message: "file's content {{ read(inputs.myfile) }}"

Assuming you have a file called example.txt in the same directory as your Python script, you can pass a file as an input to the flow using the following Python code:

import os
from kestra import Flow

os.environ["KESTRA_HOSTNAME"] = "http://host.docker.internal:8080" # Set this when executing inside Kestra

flow = Flow()
with open('example.txt', 'rb') as fh:
    flow.execute('company.team', 'myflow', {'files': ('myfile', fh, 'text/plain')})

Keep in mind that files is a tuple with the following structure: ('input_id', file_object, 'content_type').

Execute with ForEachItem

The ForEachItem task allows you to iterate over a list of items and run a subflow for each item, or for each batch containing multiple items. Use this to process large lists in parallel, e.g., millions of records from a database table or an API payload.

The ForEachItem task is a Flowable task, which means that it can be used to define the flow logic and control the execution of the flow.

Syntax:

id: each_example
namespace: company.team
tasks:
  - id: each
    type: io.kestra.plugin.core.flow.ForEachItem
    items: "{{ inputs.file }}" # could be also an output variable {{ outputs.extract.uri }}
    inputs:
      file: "{{ taskrun.items }}" # batch items passed to the subflow
    batch:
      rows: 4
      bytes: "1024"
      partitions: 2
    namespace: company.team
    flowId: subflow
    revision: 1 # optional (default: latest)
    wait: true # wait for the subflow execution
    transmitFailed: true # fail the task run if the subflow execution fails
    labels: # optional labels to pass to the subflow to be executed
      key: value

id: subflow
namespace: company.team

inputs:
  - id: items
    type: FILE

tasks:
  - id: for_each_item
    type: io.kestra.plugin.scripts.shell.Commands
    taskRunner:
      type: io.kestra.plugin.core.runner.Process
    commands:
      - cat "{{ inputs.items }}"

  - id: read
    type: io.kestra.plugin.core.log.Log
    message: "{{ read(inputs.items) }}"

id: each_parent
namespace: company.team

tasks:
  - id: extract
    type: io.kestra.plugin.jdbc.duckdb.Query
    sql: |
      INSTALL httpfs;
      LOAD httpfs;
      SELECT *
      FROM read_csv_auto('https://huggingface.co/datasets/kestra/datasets/raw/main/csv/orders.csv', header=True);
    store: true

  - id: each
    type: io.kestra.plugin.core.flow.ForEachItem
    items: "{{ outputs.extract.uri }}"
    batch:
      rows: 10
    namespace: company.team
    flowId: subflow
    wait: true
    transmitFailed: true
    inputs:
      items: "{{ taskrun.items }}"
