Log Shipper

Manage and distribute logs across your entire infrastructure.

Log Shipper functionality

Log Shipper can distribute Kestra logs from across your instance to an external logging platform. Log synchronization fetches logs and batches them into optimized chunks automatically. The batch process is done intelligently through defined synchronization points. Once batched, the Log Shipper delivers consistent and reliable data to your monitoring platform.

Log Shipper is built on top of Kestra plugins, ensuring it can integrate with popular logging platforms and expand as more plugins are developed. As of Kestra version 0.21, supported observability platforms include ElasticSearch, Datadog, New Relic, Azure Monitor, Google Operational Suite, AWS Cloudwatch, Splunk, OpenSearch, and OpenTelemetry.

Log Shipper properties

The Log Shipper plugin has several key properties to define where the logs should be sent and how they are batched. Below is a list of the definable properties and their purpose:

logExporters - This property is required, and it specifies the platform where the logs will be exported. It support a list of entries, allowing you to export logs to different platforms at once
logLevelFilter - Specifies the minimum log level to send with the default being INFO. With INFO, all log levels INFO and above (WARNING and ERROR) are batched. If you only want logs that are warnings or errors, then you can set this property to WARNING and so on.
lookbackPeriod - Determines the fetch period for logs to be sent. For example, with a default value of P1D, all logs generated between now and one day ago are batched.
namespace - Sets the task to only gather logs from a specific Kestra Namespace. If not specified, all instance logs are fetched.
offsetKey - Specifies the prefix of the Key Value (KV) store key that contains the last execution’s end fetched date. By default this is set as LogShipper-state. You can change this key store name to reset the last fetched date if, for example, you want to export previously exported logs.
delete - By default this property is set to false. Boolean property that when set to true deletes the batched logs as a part of the task run

How log shipper works

Let’s take a look at a simple example of a Log Shipper task that fetches logs and exports them to AWS CloudWatch, Google Operational Suite, and Azure Monitor at the same time.

id: logShipper
namespace: system

tasks:
  - id: shipLogs
    type: io.kestra.plugin.ee.core.log.LogShipper
    logLevelFilter: INFO
    lookbackPeriod: P1D
    offsetKey: logShipperOffset
    logExporters:
      - id: awsCloudWatch
        type: io.kestra.plugin.ee.aws.cloudwatch.LogExporter
        accessKeyId: "{{ secret('AWS_ACCESS_KEY_ID') }}"
        secretKeyId: "{{ secret('AWS_SECRET_KEY_ID') }}"
        region: us-east-1
        logGroupName: kestra
        logStreamName: production
        chunk: 5000

      - id: googleOperationalSuite
        type: io.kestra.plugin.ee.gcp.gcs.LogExporter
        projectId: my-gcp-project
        chunk: 2000

      - id: azureMonitor
        type: io.kestra.plugin.ee.azure.monitor.LogExporter
        endpoint: https://endpoint-host.ingest.monitor.azure.com
        tenantId: "{{ secret('AZURE_TENANT_ID') }}"
        clientId: "{{ secret('AZURE_CLIENT_ID') }}"
        clientSecret: "{{ secret('AZURE_CLIENT_SECRET') }}"
        ruleId: dcr-69f0b123041d4d6e9f2bf72aad0b62cf
        streamName: kestraLogs
        chunk: 1000

The plugin starts by identifying the starting timestamp and checking if the last processed log exists. If it does, the plugin uses the offsetKey to fetch logs from the database. If the last processed log does not exist, the plugin uses the current time minus the lookbackPeriod to fetch logs from the database.

The logs are then distributed to the exporters in chunks of 5000, 2000, and 1000 for AWS CloudWatch, Google Suite, and Azure Monitor, respectively. Once the logs are distributed, the offset key in the Key Value store is updated.

flowchart TD
    B[Identify starting timestamp] --> C{Last processed log exists?}
    C -- Yes --> D[Use offsetKey]
    C -- No --> E["Use now() - lookbackPeriod"]
    D --> F[Fetch logs from DB]
    E --> F[Fetch logs from DB]
    F --> H[Distribute logs to exporters]
    H -->|Flush in chunks of 5000| I1[AWS CloudWatch]
    H -->|Flush in chunks of 2000| I2[Google Suite]
    H -->|Flush in chunks of 1000| I3[Azure Monitor]
    I1 & I2 & I3 --> K[Update offsetKey in KV]

Log Shipper examples

The Log Shipper integrates with many popular observability platforms. Below are a couple of example flows using a Kestra core plugin as well as external platform plugins.

Kestra `FileLogExporter`

The following example uses Kestra’s core FileLogExporter plugin to synchronize the logs of the company.team namespace. The synchronize_logs task outputs a file, and the log file uri is passed as an expression in the upload task to then upload the logs to an S3 bucket.

id: log_shipper_file
namespace: system

tasks:
  - id: synchronize_logs
    type: io.kestra.plugin.ee.core.log.LogShipper
    logLevelFilter: INFO
    lookbackPeriod: P1D
    offsetKey: LogShipper-local-demo
    delete: false
    namespace: company.team
    logExporters:
      - id: file
        type: io.kestra.plugin.ee.core.log.FileLogExporter
        format: JSON # default ION
        maxLinesPerFile: 100

  - id: upload
    type: io.kestra.plugin.aws.s3.Upload
    accessKeyId: "{{ secret('AWS_ACCESS_KEY_ID') }}"
    secretKeyId: "{{ secret('AWS_SECRET_KEY_ID') }}"
    from: "{{ outputs.synchronize_logs.outputs.file.uri }}"
    key: logs/kestra.txt
    bucket: kestra-log-demo-bucket
    region: eu-west-2

Datadog

The below example demonstrates an execution that runs a daily log synchronization and distribution of logs with Datadog using the default property settings.

id: log_shipper
namespace: company.team

triggers:
  - id: daily
    type: io.kestra.plugin.core.trigger.Schedule
    cron: "@daily"

tasks:
  - id: log_export
    type: io.kestra.plugin.ee.core.log.LogShipper
    logLevelFilter: INFO
    lookbackPeriod: P1D
    delete: false
    logExporters:
      - id: DatadogLogExporter
        type: io.kestra.plugin.ee.datadog.LogExporter
        basePath: '{{ secret("DATADOG_INSTANCE_URL") }}'
        apiKey: '{{ secret("DATADOG_APIK_KEY") }}'

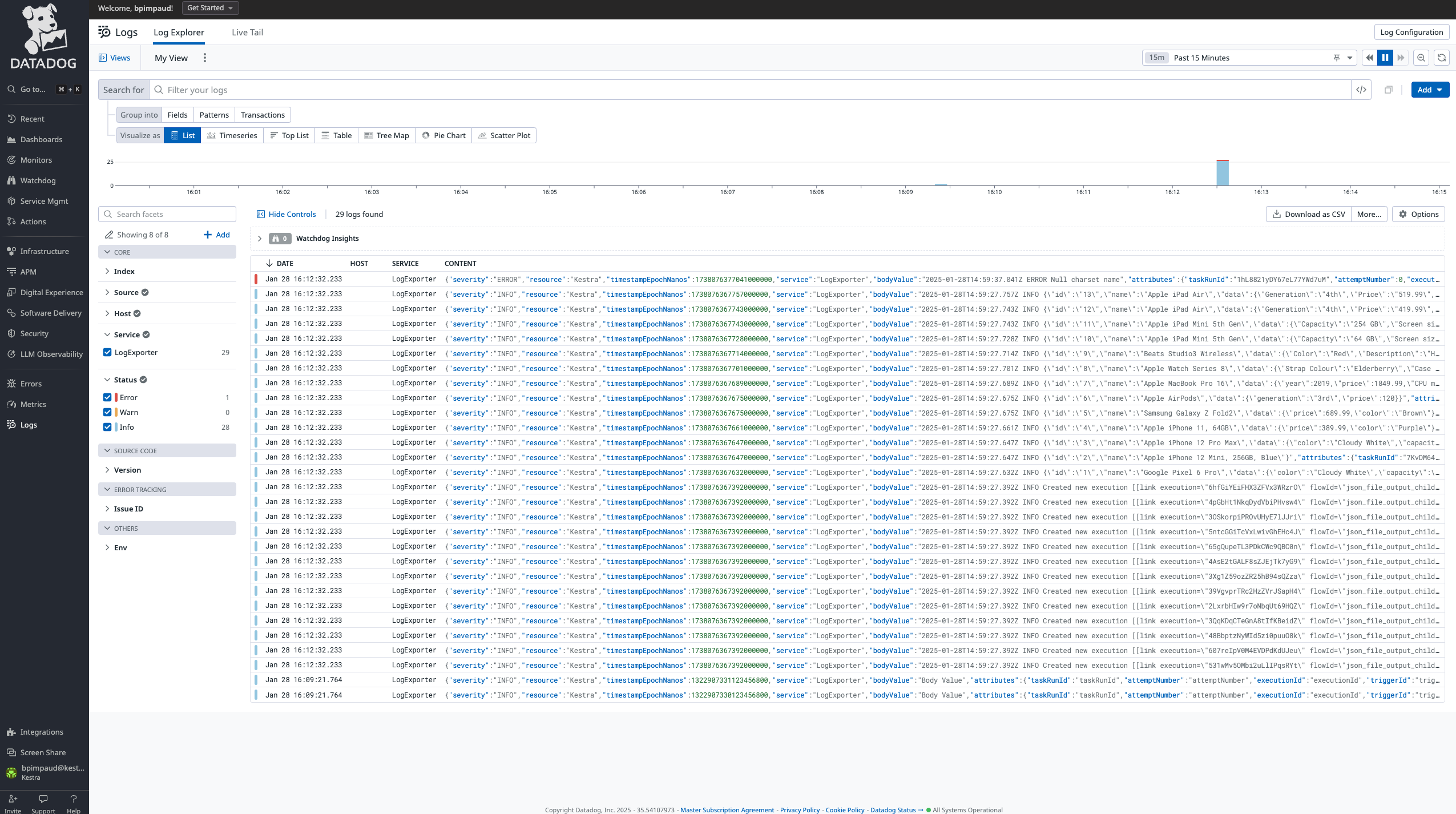

The batched logs directly populate your Datadog instance like in the following screenshot:

Datadog Logs

AWS Cloudwatch

This example exports logs to AWS Cloudwatch. The following example flow triggers a daily batch and exports to AWS’s service Amazon CloudWatch:

id: log_shipper
namespace: company.team

triggers:
  - id: daily
    type: io.kestra.plugin.core.trigger.Schedule
    cron: "@daily"

tasks:
  - id: log_export
    type: io.kestra.plugin.ee.core.log.LogShipper
    logLevelFilter: INFO
    lookbackPeriod: P1D
    offsetKey: log_shipper_aws_cloudwatch_state
    delete: false
    logExporters:
      - id: aws_cloudwatch
        type: io.kestra.plugin.ee.aws.cloudwatch.LogExporter
        accessKeyId: "{{ secret('AWS_ACCESS_KEY_ID') }}"
        secretKeyId: "{{ secret('AWS_SECRET_KEY_ID') }}"
        region: "{{ vars.region }}"
        logGroupName: kestra
        logStreamName: kestra-log-stream

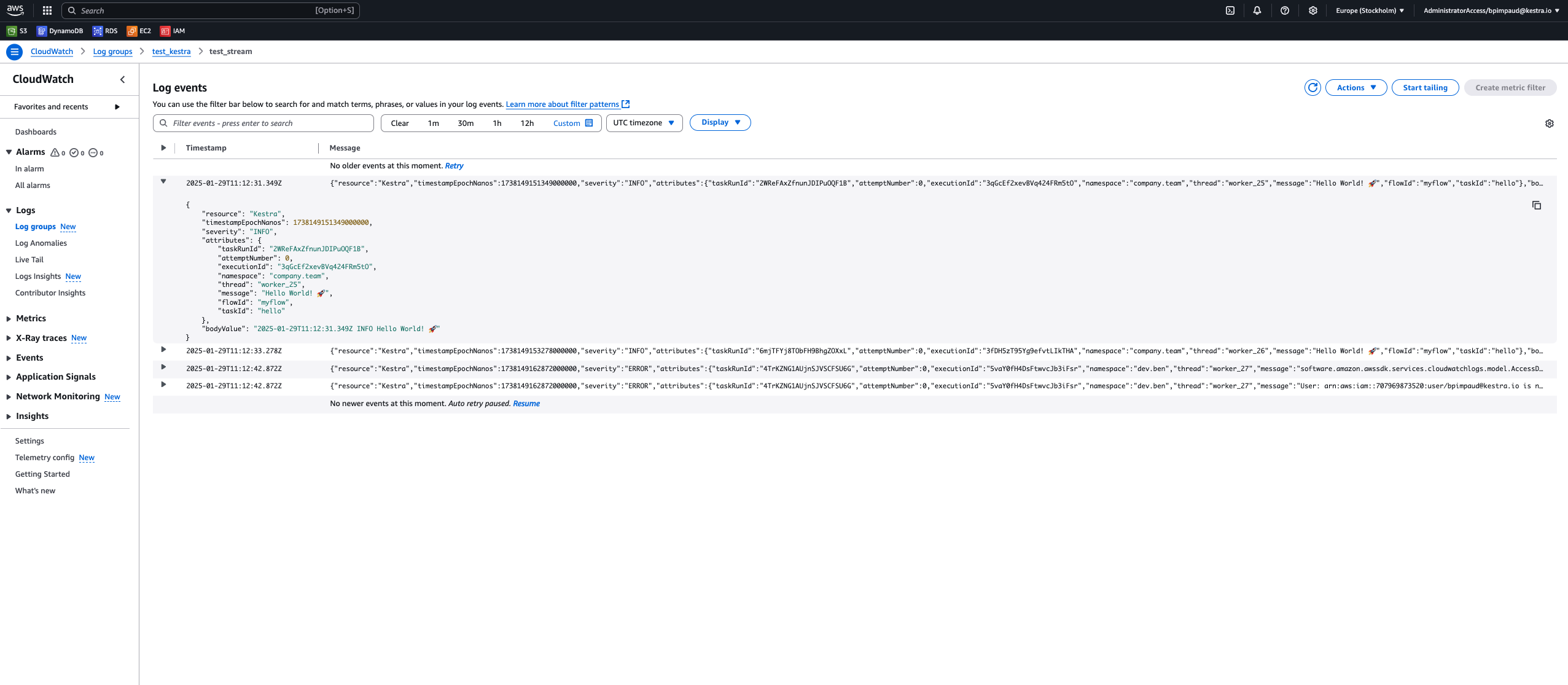

The logs are viewable in the interface of the specified Log Group and can be examined like in the following screenshot:

AWS Cloud Watch Logs

AWS S3

This example exports logs to AWS S3. The following example flow triggers a daily batch and exports to AWS’s S3 object storage:

id: log_shipper
namespace: system

triggers:
  - id: daily
    type: io.kestra.plugin.core.trigger.Schedule
    cron: "@daily"

tasks:
  - id: log_export
    type: io.kestra.plugin.ee.core.log.LogShipper
    logLevelFilter: INFO
    lookbackPeriod: P1D
    logExporters:
      - id: S3LogExporter
        type: io.kestra.plugin.ee.aws.s3.LogExporter
        accessKeyId: "{{ secret('AWS_ACCESS_KEY_ID') }}"
        secretKeyId: "{{ secret('AWS_SECRET_KEY_ID') }}"
        region: "{{ vars.region }}"
        format: JSON
        bucket: logbucket
        logFilePrefix: kestra-log-file
        maxLinesPerFile: 1000000

Google Operational Suite

This example exports logs to Google Cloud Observability. The following example flow triggers a daily batch and exports to Google Cloud Platform’s observability monitor:

id: log_shipper
namespace: company.team

triggers:
  - id: daily
    type: io.kestra.plugin.core.trigger.Schedule
    cron: "@daily"

tasks:
  - id: shipLogs
    type: io.kestra.plugin.ee.core.log.LogShipper
    logLevelFilter: INFO
    lookbackPeriod: P1D
    offsetKey: logShipperOffset
    delete: false
    logExporters:
      - id: googleOperationalSuite
        type: io.kestra.plugin.ee.gcp.operationalsuite.LogExporter
        projectId: my-gcp-project

This example exports logs to Google Cloud Storage. The following example flow triggers a daily batch and exports to Google Cloud Storage:

id: log_shipper
namespace: company.team

triggers:
  - id: daily
    type: io.kestra.plugin.core.trigger.Schedule
    cron: "@daily"

tasks:
  - id: log_export
    type: io.kestra.plugin.ee.core.log.LogShipper
    logLevelFilter: INFO
    lookbackPeriod: P1D
    logExporters:
      - id: GCPLogExporter
        type: io.kestra.plugin.ee.gcp.gcs.LogExporter
        projectId: myProjectId
        format: JSON
        maxLinesPerFile: 10000
        bucket: my-bucket
        logFilePrefix: kestra-log-file

Azure Monitor

This example exports logs to Azure Monitor. The following example flow triggers a daily batch and export to Azure Monitor:

id: log_shipper
namespace: company.team

triggers:
  - id: daily
    type: io.kestra.plugin.core.trigger.Schedule
    cron: "@daily"

tasks:
  - id: shipLogs
    type: io.kestra.plugin.ee.core.log.LogShipper
    logLevelFilter: INFO
    lookbackPeriod: P1D
    offsetKey: logShipperOffset
    delete: false
    logExporters:
      - id: azureMonitor
        type: io.kestra.plugin.ee.azure.monitor.LogExporter
        endpoint: https://endpoint-host.ingest.monitor.azure.com
        tenantId: "{{ secret('AZURE_TENANT_ID') }}"
        clientId: "{{ secret('AZURE_CLIENT_ID') }}"
        clientSecret: "{{ secret('AZURE_CLIENT_SECRET') }}"
        ruleId: dcr-69f0b123041d4d6e9f2bf72aad0b62cf
        streamName: kestraLogs

Azure Blob Storage

This example exports logs to Azure Blob Storage. The following example flow triggers a daily batch and export to Azure Blob Storage:

id: log_shipper
namespace: company.team

triggers:
  - id: daily
    type: io.kestra.plugin.core.trigger.Schedule
    cron: "@daily"

tasks:
  - id: log_export
    type: io.kestra.plugin.ee.core.log.LogShipper
    logLevelFilter: INFO
    lookbackPeriod: P1D
    logExporters:
      - id: AzureLogExporter
        type: io.kestra.plugin.ee.azure.storage.LogExporter
        endpoint: https://myblob.blob.core.windows.net/
        tenantId: tenant_id
        clientId: client_id
        clientSecret: client_secret
        containerName: logs
        format: JSON
        logFilePrefix: kestra-log-file
        maxLinesPerFile: 1000000

Elasticsearch

This example exports logs to Elasticsearch. The following example flow triggers a daily batch and export to Elasticsearch Observability platform.

id: logShipper
namespace: system

triggers:
  - id: daily
    type: io.kestra.plugin.core.trigger.Schedule
    cron: "@daily"

tasks:
  - id: shipLogs
    type: io.kestra.plugin.ee.core.log.LogShipper
    logLevelFilter: INFO
    lookbackPeriod: P1D
    offsetKey: logShipperOffset
    delete: false
    logExporters:
      - id: elasticsearch
        type: io.kestra.plugin.elasticsearch.LogExporter
        indexName: kestra-logs
        connection:
          basicAuth:
            password: "{{ secret('ES_PASSWORD') }}"
            username: kestra_user
          hosts:
            - https://elastic.example.com:9200

New Relic

This example exports logs to New Relic. The following example flow triggers a daily batch and export to the New Relic Observability Platform.

id: logShipper
namespace: system

triggers:
  - id: daily
    type: io.kestra.plugin.core.trigger.Schedule
    cron: "@daily"

tasks:
  - id: shipLogs
    type: io.kestra.plugin.ee.core.log.LogShipper
    logLevelFilter: INFO
    lookbackPeriod: P1D
    offsetKey: logShipperOffset
    delete: false
    logExporters:
      - id: newRelic
        type: io.kestra.plugin.ee.newrelic.LogExporter
        basePath: https://log-api.newrelic.com
        apiKey: "{{ secret('NEWRELIC_API_KEY') }}"

Splunk

This example exports logs to Splunk. The following example flow triggers a daily batch and export to Splunk Observability Cloud.

id: log_shipper
namespace: system

triggers:
  - id: daily
    type: io.kestra.plugin.core.trigger.Schedule
    cron: "@daily"

  tasks:
    - id: log_export
      type: io.kestra.plugin.ee.core.log.LogShipper
      logLevelFilter: INFO
      lookbackPeriod: P1D
      offsetKey: logShipperOffset
      delete: false
      logExporters:
        - id: SplunkLogExporter
          type: io.kestra.plugin.ee.splunk.LogExporter
          host: https://example.splunkcloud.com:8088
          token: "{{ secret('SPLUNK_API_KEY') }}"

OpenSearch

This example exports logs to OpenSearch database. The following example flow triggers a daily batch and export to OpenSearch Observability platform.

id: log_shipper
namespace: system

triggers:
  - id: daily
    type: io.kestra.plugin.core.trigger.Schedule
    cron: "@daily"

tasks:
  - id: logSync
    type: io.kestra.plugin.ee.core.log.LogShipper
    logLevelFilter: INFO
    lookbackPeriod: P1D
    offsetKey: logShipperOffset
    delete: false
    logExporters:
      - id: OpensearchLogExporter
        type: io.kestra.plugin.ee.opensearch.LogExporter
        connection:
          hosts:
            - "http://localhost:9200/"
        indexName: "logs"

OpenTelemetry

This example exports logs to OpenTelemetry. The following example flow triggers a daily batch and export to an OpenTelemetry Collector.

id: logShipper
namespace: system

triggers:
  - id: daily
    type: io.kestra.plugin.core.trigger.Schedule
    cron: "@daily"

tasks:
  - id: shipLogs
    type: io.kestra.plugin.ee.core.log.LogShipper
    logLevelFilter: INFO
    lookbackPeriod: P1D
    offsetKey: logShipperOffset
    delete: false
    logExporters:
      - id: openTelemetry
        type: io.kestra.plugin.ee.opentelemetry.LogExporter
        otlpEndpoint: http://otel-collector:4318/v1/logs
        authorizationHeaderName: Authorization
        authorizationHeaderValue: "Bearer {{ secret('OTEL_TOKEN') }}"

Audit Log Shipper

To send Audit Logs to an external system, there is the Audit Log Shipper task type. The Audit Log Shipper task extracts logs from the Kestra backend and loads them to desired destinations including Datadog, Elasticsearch, New Relic, OpenTelemetry, AWS CloudWatch, Google Operational Suite, and Azure Monitor.

The Audit Log Shipper uses the following properties similar to the execution Log Shipper, except that the resources property replaces the logLevelFilter property.

logExporters - This property is required, and it specifies the platform where the audit logs will be exported. It supports a list of entries, allowing you to export logs to different platforms at once
resources - Specifies from which Kestra resource to ship audit logs for (e.g., FLOW, EXECUTION, USER, KV STORE, etc.)
lookbackPeriod - Determines the fetch period for audit logs to be sent. For example, with a default value of P1D, all audit logs generated between now and one day ago are batched.
offsetKey - Specifies the key that contains the last fetched date. By default, Kestra uses the key LogShipper-state. You can change the value of that KV pair if you want to export previously fetched logs again.
delete - Boolean property that, when set to true, deletes the logs from Kestra’s database immediately after successful export, helping optimize storage by removing logs that no longer need to reside in Kestra’s metadata store. By default, this property is set to false.

The below workflow ships Audit Logs to multiple destinations using each of the supported monitoring systems.

id: Audit-logShipper
namespace: system

tasks:
  - id: shipLogs
    type: io.kestra.plugin.ee.core.log.AuditLogShipper
    resources:
      - FLOW
      - EXECUTION
    lookbackPeriod: P1D
    offsetKey: logShipperOffset
    logExporters:
      - id: file
        type: io.kestra.plugin.ee.core.log.FileLogExporter

      - id: awsCloudWatch
        type: io.kestra.plugin.ee.aws.cloudwatch.LogExporter
        accessKeyId: "{{ secret('AWS_ACCESS_KEY_ID') }}"
        secretKeyId: "{{ secret('AWS_SECRET_KEY_ID') }}"
        region: us-east-1
        logGroupName: kestra
        logStreamName: production

      - id: googleOperationalSuite
        type: io.kestra.plugin.ee.gcp.operationalsuite.LogExporter
        projectId: my-gcp-project

      - id: azureMonitor
        type: io.kestra.plugin.ee.azure.monitor.LogExporter
        endpoint: https://endpoint-host.ingest.monitor.azure.com
        tenantId: "{{ secret('AZURE_TENANT_ID') }}"
        clientId: "{{ secret('AZURE_CLIENT_ID') }}"
        clientSecret: "{{ secret('AZURE_CLIENT_SECRET') }}"
        ruleId: dcr-69f0b123041d4d6e9f2bf72aad0b62cf
        streamName: kestraLogs

      - id: datadog
        type: io.kestra.plugin.ee.datadog.LogExporter
        basePath: https://http-intake.logs.datadoghq.eu
        apiKey: "{{ secret('DATADOG_API_KEY') }}"

      - id: elasticsearch
        type: io.kestra.plugin.elasticsearch.LogExporter
        indexName: kestra-logs
        connection:
          basicAuth:
            password: "{{ secret('ES_PASSWORD') }}"
            username: kestra_user
          hosts:
            - https://elastic.example.com:9200

      - id: newRelic
        type: io.kestra.plugin.ee.newrelic.LogExporter
        basePath: https://log-api.newrelic.com
        apiKey: "{{ secret('NEWRELIC_API_KEY') }}"

      - id: openTelemetry
        type: io.kestra.plugin.ee.opentelemetry.LogExporter
        otlpEndpoint: http://otel-collector:4318/v1/logs
        authorizationHeaderName: Authorization
        authorizationHeaderValue: "Bearer {{ secret('OTEL_TOKEN') }}"

triggers:
  - id: dailySchedule
    type: io.kestra.plugin.core.trigger.Schedule
    cron: "0 0 * * *"
    disabled: true
